Features:
- Made from V0 Fire rated materials
- Features removable brush section to assist cable installation
- Overlapping brush seal provides a better air seal
- Supplied with cutting template and fixing hardware
- RoHS compliant

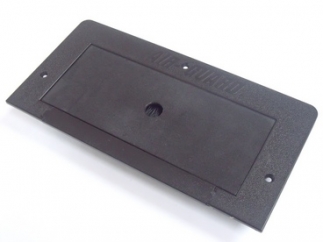

- Metal or Plastic safety cover available
Description:

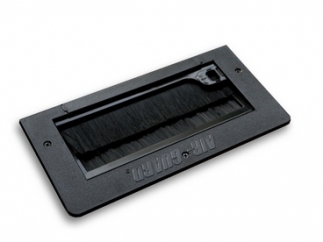

GTAG1 Air-Guard®

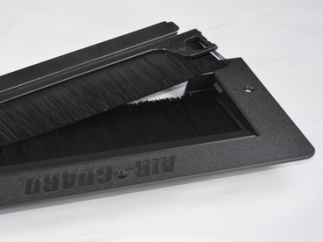

The original award winning Air-Guard cable grommet features a latched removable front brush section. This enables easy cable installation when the grommet is fitted at a panels perimeter edge or in the centre of a floor panel. When large cable openings are required 2 units can be installed face to face. The GTAG1's overlapping brush system provides a superior air seal to conventional tip to tip brush seals.
Made entirely from V0 fire rated materials the GTAG1 Air-Guard safely seals raised floor cable openings and helps reduce running costs by eliminating by-pass air.
Product Dimensions
- Panel Cut Out - ( Centre Cut ) 265mm x 115mm ( Perimeter Cut ) 265mm x 135mm
- Overall Size - 328mm x 162mm
- Cable Opening - 230mm x 65mm
