Features:
- Circular design - better seal brush system
- Hybrid Brush and gasket seals
- V0 fire rated
- 2 piece construction
- Usable space wide enough to pass 32amp Commando sockets through
Description:
GTAG11 Air-Guard

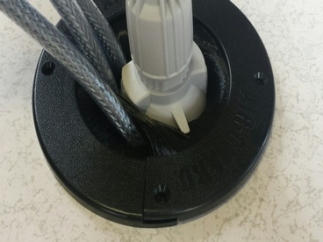

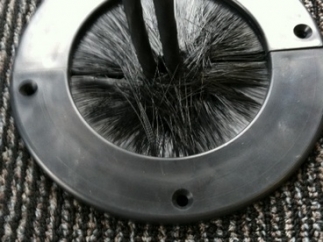

Designed to fit the raised floor industries most popular floor panel cut out size 127mm diameter the GTAG11 has established itself as a firm favourite with data centre engineers. This compact hybrid grommet features both a brush and gasket seal delivering excellent air sealing performance around cables. The grommet is wide enough to pass a large 32amp commando type plug through the brush seal. Brush formed into a circular configuration concentrates bristles towards the centre of the grommet which then inter-link to form a tight air seal around cables and pipework passed through the grommet opening.
In projects where just power cables are installed below the raised floor, the GTAG11 Air-Guard is a perfect specification solution. Made entirely from V0 fire rated materials this compact grommet ticks all the boxes.
Dimensions
Overall - 155mm diameter
Cut Out - 127mm diameter
Grommet depth - 38mm
