Features:
Features
- Available with modular protection modules (power filters, circuit breakers, earth leakage devices)
- Many combinations of power and/or data/voice and peripheral connectors available
- Up to 30 different international socket types can be fitted
- 8 selectable angles of orientation (45 degree intervals) for each socket (certain regulations limit options in some instances)
- Can be supplied with two or more circuits in one unit
- Hybrid power (power and data in one unit)
Electrical
Operating voltage: 220V – 250V AC @ 50 Hz 110V – 125V AC @ 60 Hz
Current: 15A
Max power: 1800W @ 110V – 125V AC 3000W @ 220V – 250V AC
Local electrical regulations determine the final electrical rating of the system.
For higher current ratings, please consult your distributor directly.
Dimensions
Length: Variable (Depending on configuration)
Width: 52mm
Height: 42
Description:
Orion - 2 power & 2 data desk mounted module ref : BP-S1-202

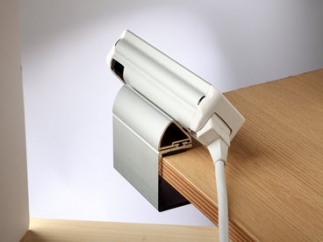

The sleek Orion slimline desk module delivers power and data access within easy reach of the desk user. The neat power module is easy to attach to a standard desk and can be installed as a stand -alone unit or part of a muti socket desk solution. The module features a 500mm drop lead which can be connected to a standard GST starter lead with a 13amp socket or to the GST "out" socket on an under-desk module such as the Powerlogic Oblique unit. The module is ergonomically angled to allow comfortable easy access to the sockets.

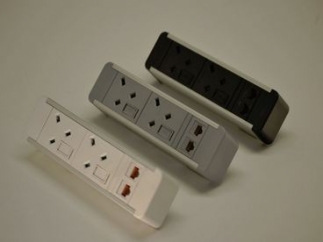

The unit is available in 3 stock colours, White/Silver, Black/Silver & Grey/Silver
Custom configured modules can be made to order.
The data outlets can accommodate either Cat 5e or Cat6 data sockets and leads
Power Sockets are individually fused
